Itech IT8500G+
The Itech IT8500G+ series is a programmable DC electronic load is specifically designed for high-precision ripple testing, with a sampling bandwidth of up to 300kHz. With the built-in ripple test function, it’s easy to measure voltage and current ripple of the DUT.
Itech IT8500G+ has built in as many as 8 fast charging protocols, meeting the test requirement of fast charging adapters, power banks, fast charging power banks and other products. At the same time, it also has other functions like automatic testing, battery discharge testing, dynamic testing, etc. So it can complete most of the performance testing of switching power supplies, batteries and other product during the development and production stages.
- 7 operating modes: ：CC/CV/CR/CW/CR+CC/CV+CC/CR-LED.
- Built-in voltage ripple and current ripple measurement function.
- Built in 8 fast charging communication protocol, including QC2.0, QC3.0, PE+, PE2.0+, USB PD2.0, USB PD3.0, FCP, SCP support fast charging device testing (*1).
- Dynamic mode up to 20kHz.
- Voltage measurement resolution up to 0.1mV / 0.1mA.
- Professional multi-channel mode, which can cascade up to 16 devices to reduce the cost of burn-in testing.
- OPP/OCP test functions, suitable for power module protection function test.
- attery discharge mode, providing three cut-off conditions of time, voltage and capacity.
- Automatic test function, widely used in adapter test.
- List function, which can simulate complex current carrier waveforms.
- Current monitoring function, without expensive current probe, easy to realize current waveform monitoring (0-10V).
- Short circuit / Measure function.
(*1) Only available with IT8511G+

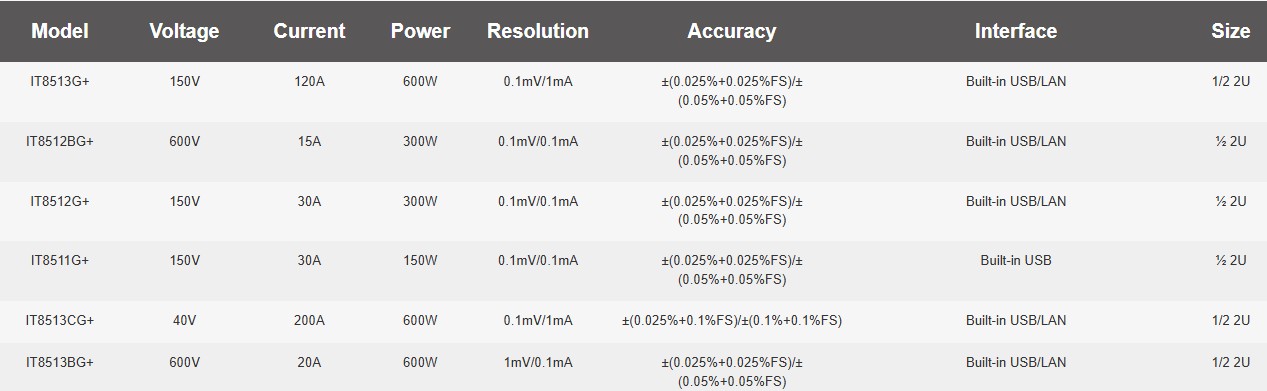

ITECH IT8500G+ Models
