Micsig ATO Automotive Tablet Oscilloscope

Descripción

Micsig ATO Automotive Tablet Oscilloscope

The Micsig ATO series automotive diagnostic oscilloscope is a specialized tool designed for automotive maintenance and diagnostics. It comes equipped with a variety of professional automotive diagnostic functions, a 10.1-inch large high-definition screen, and a built-in lithium battery with a duration of over five hours. The oscilloscope features 2/4 channel options, a maximum bandwidth of 300MHz, a maximum sampling rate of 2GSa/s, and a maximum memory depth of 220Mpts. It is powered by the SigtestUI™ multitasking system, which offers a user interface designed specifically for test instruments, allowing for operation as intuitive as using a smartphone, thereby making automotive diagnostics much easier.

Características principales:

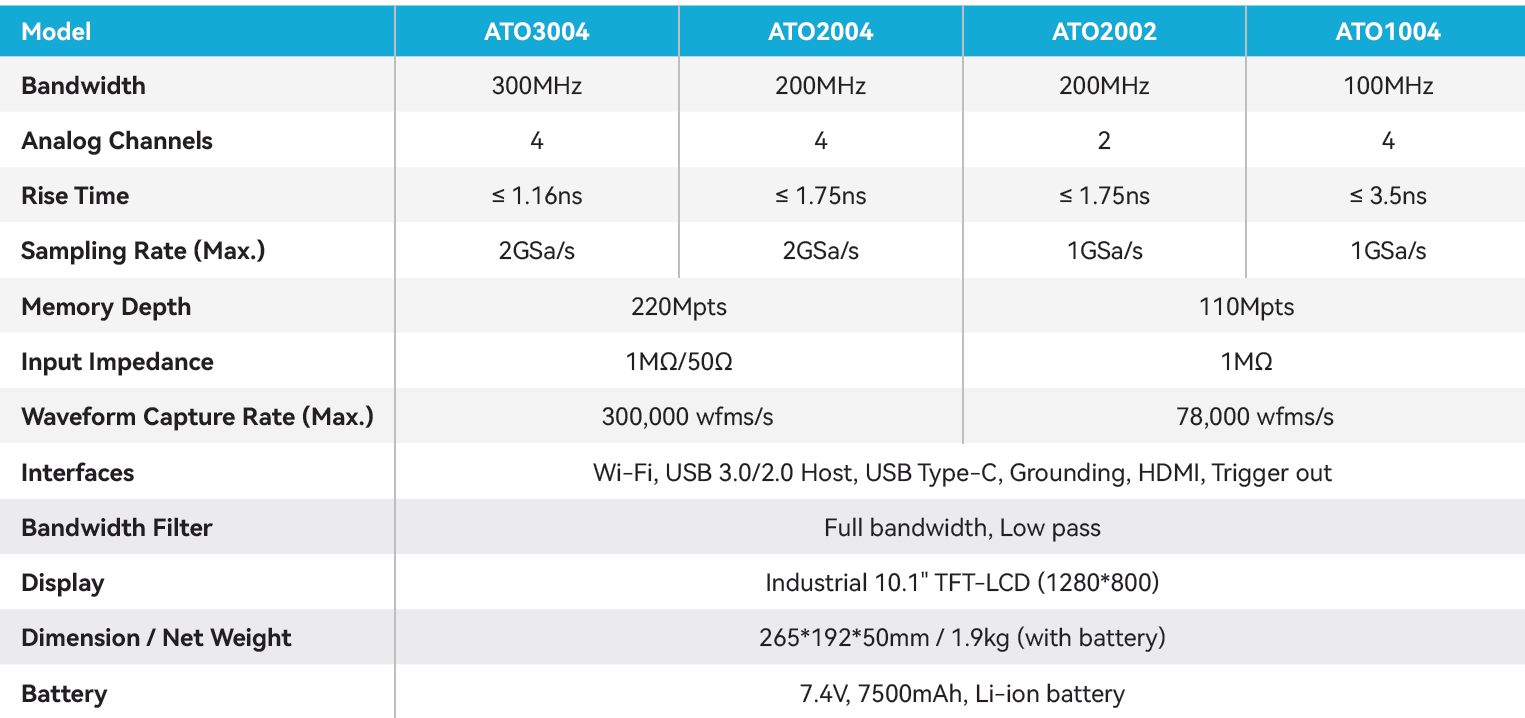

Micsig AT3004 (300MHz, 4ch), Micsig ATO2004 (200MHz, 4ch), Micsig ATO2002 (200MHz, 2ch), Micsig ATO1004 (100MHz, 4Ch).
Professional automotive diagnostic tests.
Deep memory to display all signal details.
10.1-inch high-resolution full touch screen.
Compact portable design, best for field work.
Comprehensive serial bus trigger & decoding.
Large battery support continual field work.
Support Wi-Fi, USB, PC and SCPI control.
Android-based OS, 32GB internal storage.
Hardware-based filter to eliminates interferences.
Switchable 1MΩ/50Ω input impedance.
Support segmented storage acquisition
