Itech IT8100A/E Series Ultra-Dynamic High Power DC E-Load
Itech IT8100A/E series represents a new generation of graphical programmable electronic loads. An advanced touchscreen and intuitive graphical interface enable fast parameter configuration and easy waveform editing, significantly enhancing usability and efficiency. Designed for ultra-high power density, the Itech IT8100A/E delivers up to 7.2 kW in a compact 3U chassis (150 V model) and can scale to 1.8 MW through fiber-optic master-slave paralleling, meeting demanding high-voltage and high-current testing requirements.
Available in 60V, 150 V, 600 V, and 1200 V ranges, with standalone power from 2 kW to 86.4 kW, the series features high-speed current slew rates and versatile operating modes-including dynamic, sequence, and advanced loading functions-ensuring outstanding performance in applications such as Al server power supplies, power modules, fuel cells, EV charging station, Solar Array and power electronics. It provides a powerful and reliable solution for R&D, validation, and production testing.
Características:
- Touchscreen display with Meter / Scope / Datalog modes.
- Voltage range: 60V, 150V, 600V, 1200V.
- High power density: 3U 7.2 kW (150V), 3U 6 kW (600V & 1200V).
- 37U cabinet max power: 86.4 kW (150V), 72 kW (600V & 1200V).
- Optical master-slave parallel, up to 1.8 MW (150V) / 1.5 MW (600V & 1200V).
- Three-range V/I design for full precision coverage.
- High dynamic current slew rate up to 150 A/μs per unit.
- Minimum Operating Voltage: 0.24 V @ 2400 A.
- Supports 500 kHz high-speed voltage and current sampling rate.
- 1.5× short-time overloading capability (≤60 s, Ta ≤ 25°C).
- Basic load modes: CC / CV / CP / CR /CE.
- Combined load modes: CC+CR / CR+CV / CC+CV / CP+CV / CC+CR+CV+CP.
- LIST / OCP / OPP / Battery discharge / Short-circuit modes.
- User-defined waveform function for simulating complex load profiles.
- Standard interfaces: USB / LAN / CAN.

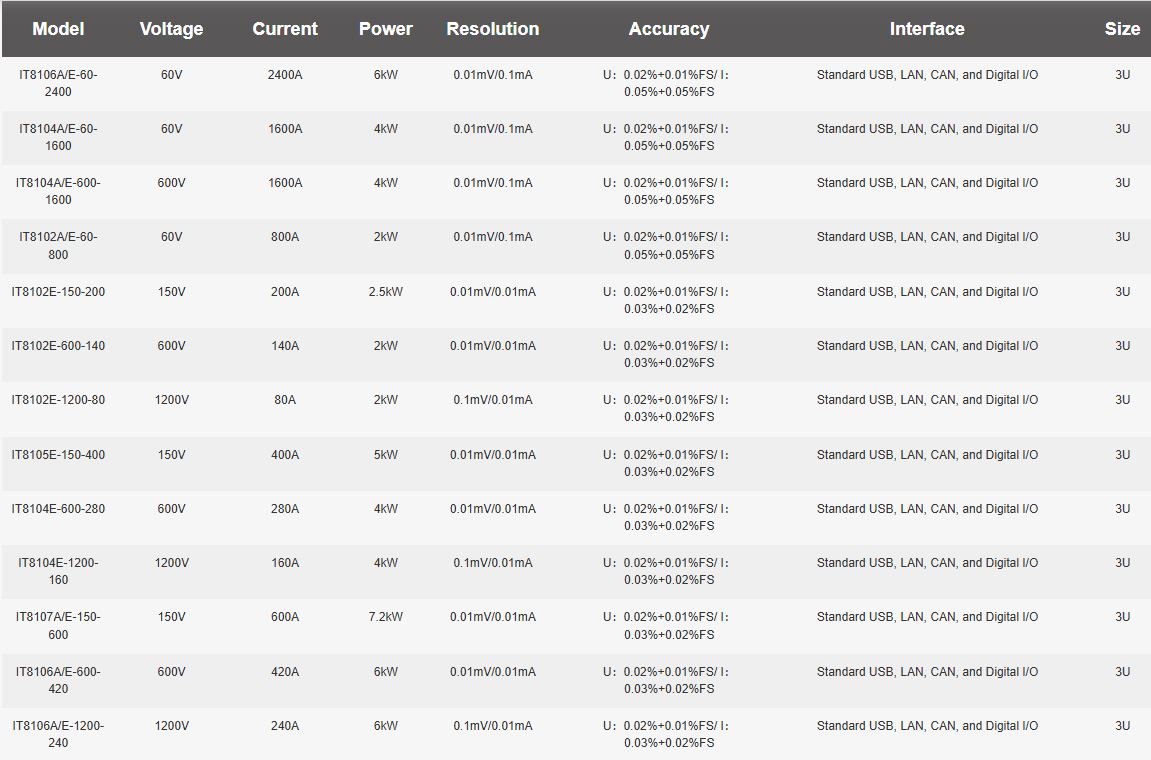

ITECH IT8100A/E models
