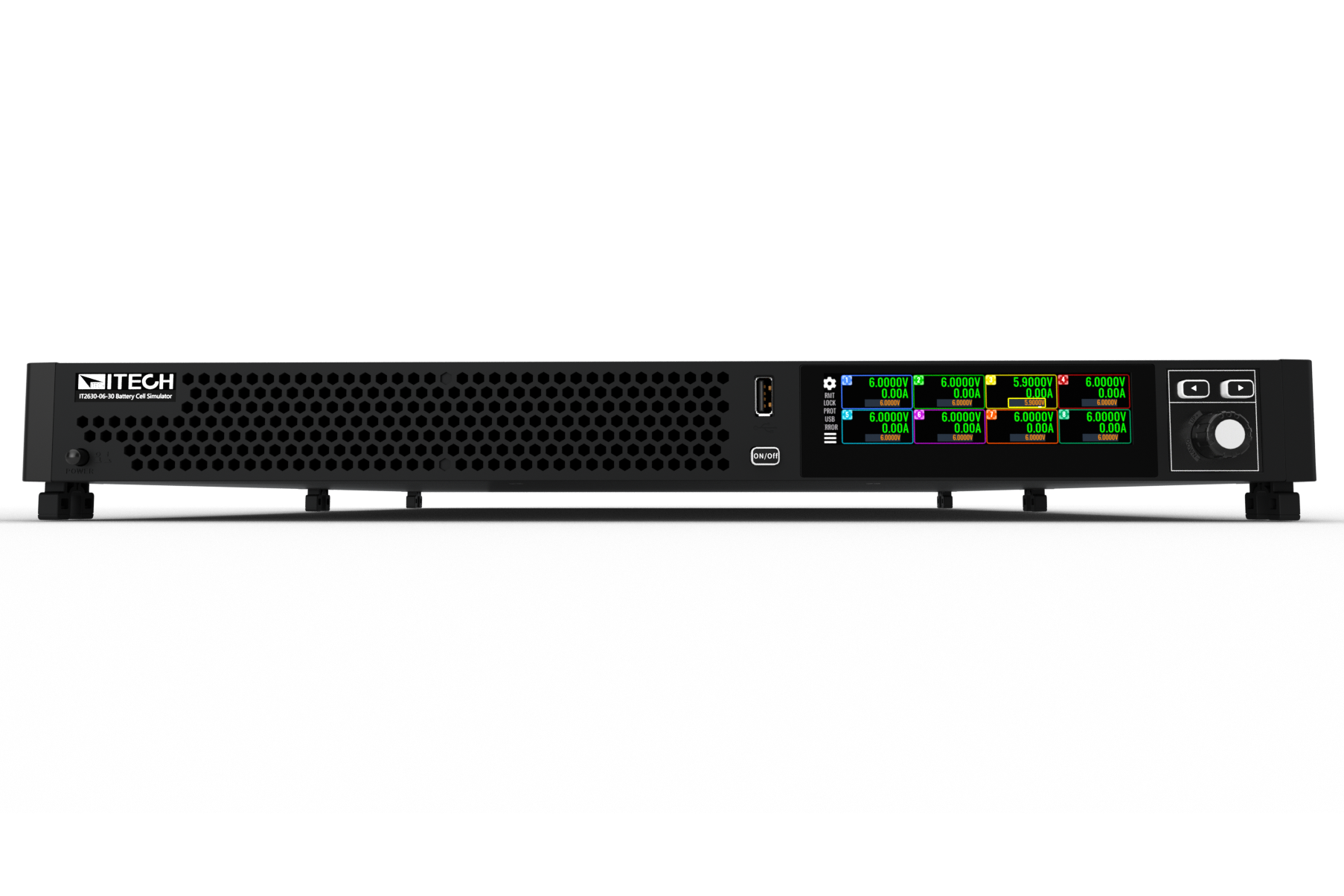

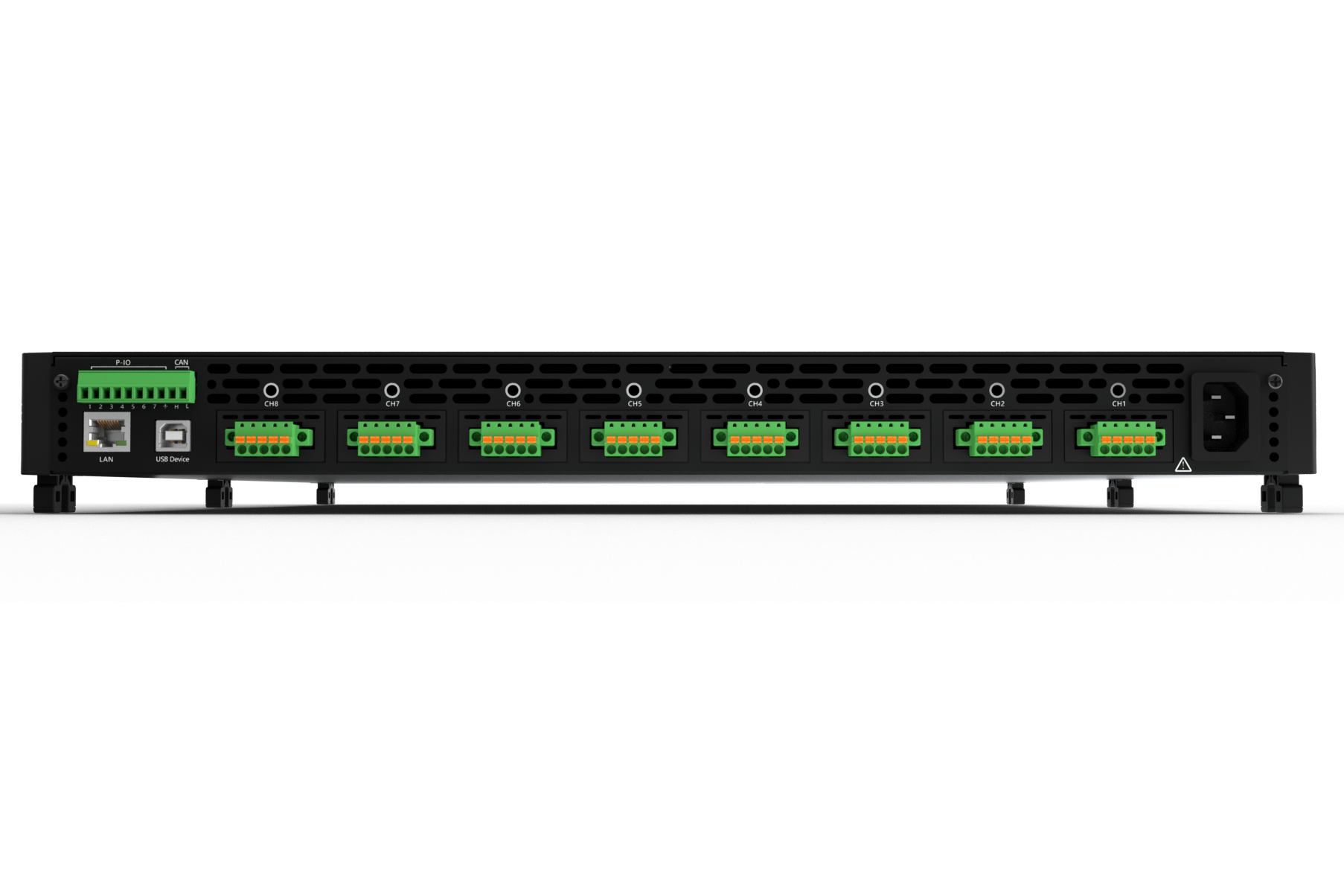

ITECH IT2600 Multi-channel Cell Simulator & Tester
The ITECH IT2600 Series is a high-precision, 1U multi-channel cell simulation and test platform. One unit integrates eight mutually isolated cell channels, each with independently programmable voltage, current and internal resistance. Built-in battery functions include 1st- through 5th-order equivalent-circuitmodels, an internal-resistance model, battery-curve simulation, fault simulation, and active/passive balancing tests.
Multiple ITECH IT2600 units can be connected in series for up to 200 channels and a safe total series voltage of 1200 VDC. The platform supports DC+AC sinusoidal voltage-ripple injection, open-circuit/short-circuit/reverse-polarity fault simulation, an oscilloscope, data logging, list programming, digital I/O, and CAN/LAN/USB interfaces for rapid integration into ATE and HIL systems.
Beyond conventional cell simulation, ITECH IT2600 also provides basic cell charge/discharge capabilities, including CV charging, discharging, cycling, capacity and energy calculations, and multiple cut off conditions. It supports workflows ranging from precision cell simulation and BMS validation to balancing tests, quiescent-current analysis, HIL integration, ATE production testing, and basic cell performance verification.
Cell Simulation Capabilities
- Built-in lithium-ion, nickel-metal hydride, nickel-cadmium and other battery models.
- 1st- to 5th-order equivalent-circuit models plus internal-resistance model.
- User-defined SOC-OCV-RES relationships with CSV import/export.
- Voltage accuracy as fine as 1 mV.
- Series expansion to a maximum of 200 channels.
- Ultra-low output ripple down to 0.5 mVrms.
- DC+AC sinusoidal voltage-ripple simulation from 1 to 1000 Hz, up to 100mVpp.
- Optional ITS5800 BMS test system for synchronized cell-voltage, temperature-sensor, insulation, precharge and communication-interaction simulation.
Integration and Validation
- Active/passive balancing tests.
- Open-circuit, short-circuit and reverse-polarity fault simulation.
- Seven fully configurable digital I/O channels.
- Oscilloscope: 100 kHz digital processing and 600 kpts memory depth.
- Data logger: minimum measurement interval of 20 µs.
- List programming with up to 2000 steps.
- Free PV2600 control software for centralized multi-channel control andATE integration.
- Standard CAN, LAN and USB interfaces; supports HIL integration.
- SCPI, CANopen and Modbus protocol support.
Basic Charge/Discharge Testing
- 10nA Current Resolution.
- Charge, discharge and charge/discharge cycle tests.
- Cutoff conditions based on voltage, current, time, capacity, energy and cycle count.
- Use with IT9320 battery test software for advanced data analysis and reportgeneration.
- Protection and Safety: OVP, UVP, OCP and OTP protection, plus reverse-polarity indication.

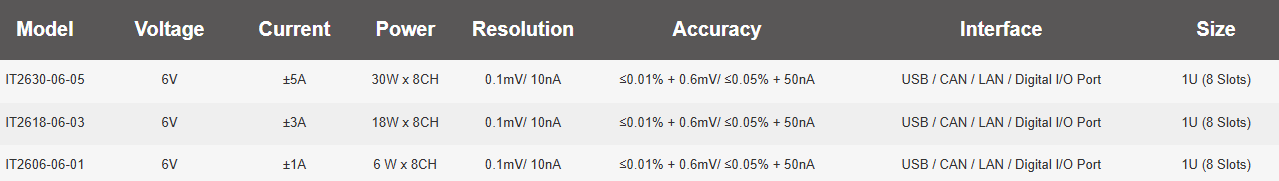

ITECH IT2600 Models
Voltage Ripple Simulation
Cell-level controlled sinusoidal ripple from 1 to 1000 Hz, up to 100 mVpp, with DC+AC output

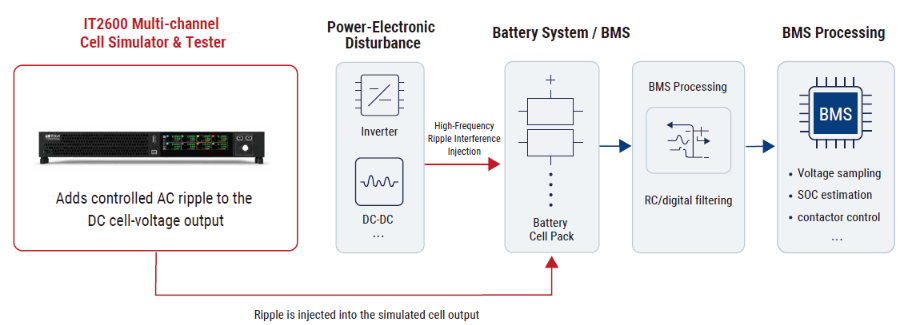

Ripple simulation superimposes a controlled AC signal – typically sinusoidal – on the simulator’s DC cell-voltage output. This reproduces ripplegenerated in real battery systems by inverters, DC/DC converters and other power-electronic devices.The primary objective is to verify the abilityof the BMS front-end filter – including RC filtering and digital filtering algorithms – to reject ripple interference. This helps ensure accuratecell-voltage sampling under high-ripple conditions and reduces the risk of SOC estimation errors, false contactor actions and other safety-related responses.
BMS Coordinated
Voltage Ripple Simulation
From Coordinated Instruments to Comprehensive BMS Testing
One Software Platform, Three Test-Resource Categories

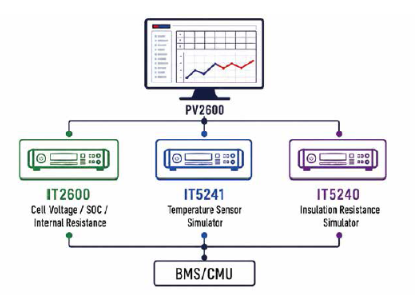

PV2600 centrally displays channel status and batch-configures voltage, SOC, internal resistance and battery models. Through unified test sequences, it coordinates ITECH IT2600, IT5241 and IT5240 so voltage, temperature and insulation conditions can change together, making complex BMS scenarios easier to configure, execute and reproduce.
- Centralized status display and batch settings for up to 200 channels.
- Unified sequencing across multiple instruments.
- Coordinated voltage, temperature and insulation changes

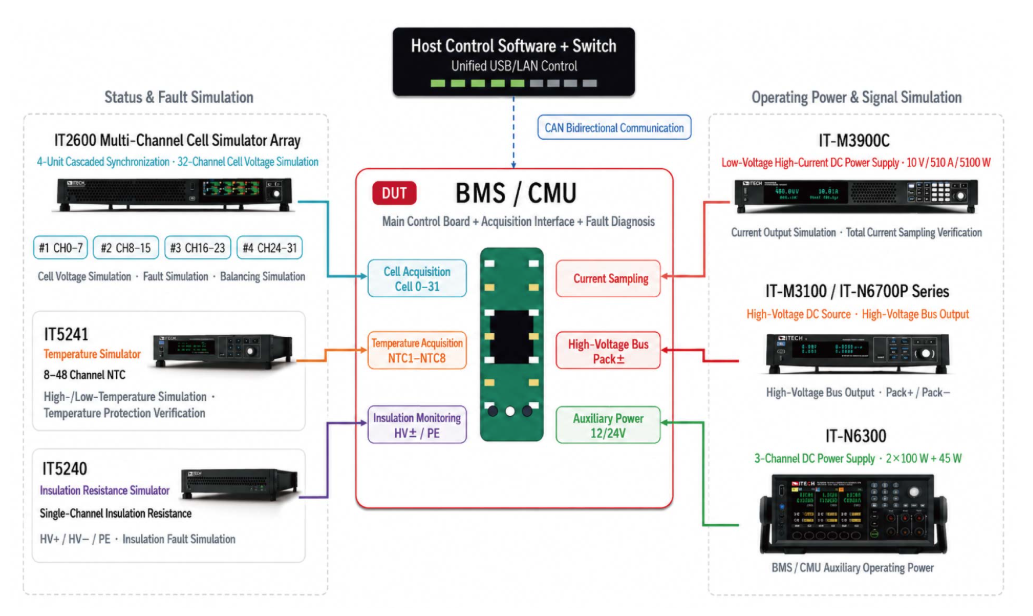

From Coordinated Instruments to Comprehensive BMS Testing
